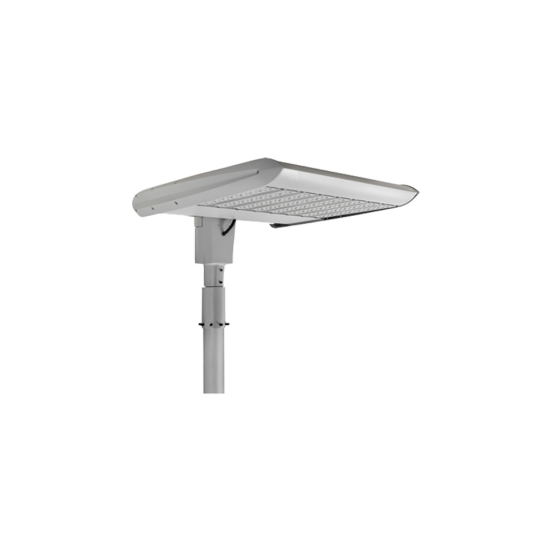

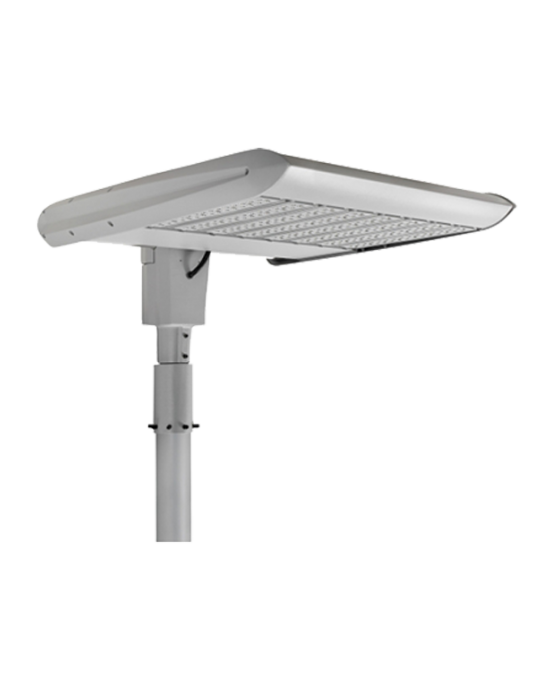

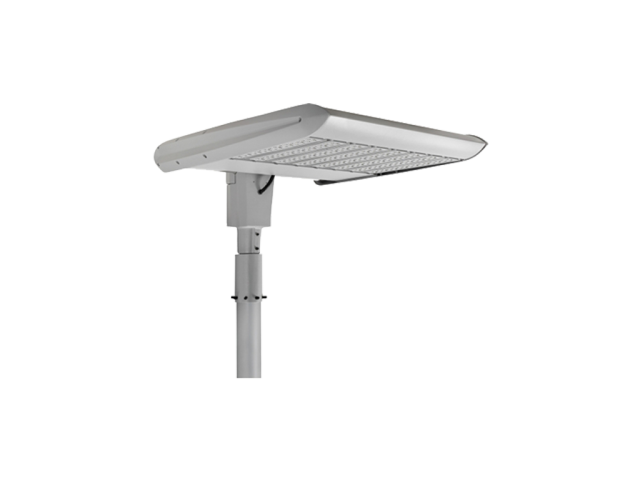

CREE Edge High Output LED Floodlight

The Cree Edge™ High Output Area/Flood luminaire is designed to deliver high lumen packages with precise optical control. The unit features a slim, low profile design that minimizes wind load and is available with two mounting options made with rugged die cast aluminum. The HV mount tenon is an adjustable arm that mounts to a horizontal or vertical 2" (51mm) IP, 2.375-2.50" (60-64mm) O.D. steel tenon. Tenon length must be a minimum of 3.75" (95mm). The direct mount bracket accessory allows for further mounting flexibility. The AA mount is an adjustable arm that mounts to a vertical 2" (51mm) IP, 2.375-3" (60-76mm) O.D. minimum 3.75" (95mm) tall tenon. The adjustable arm mount is for use in applications which have a vertical tenon and require a NEMA® Photocell Receptacle. Available with Cree TrueWhite® Technology, the Cree Edge™ High Output helps to beautifully render true colors and deliver value beyond energy savings.

Applcations

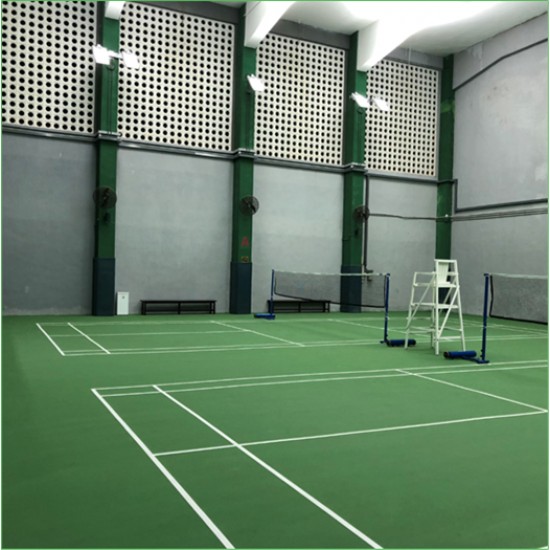

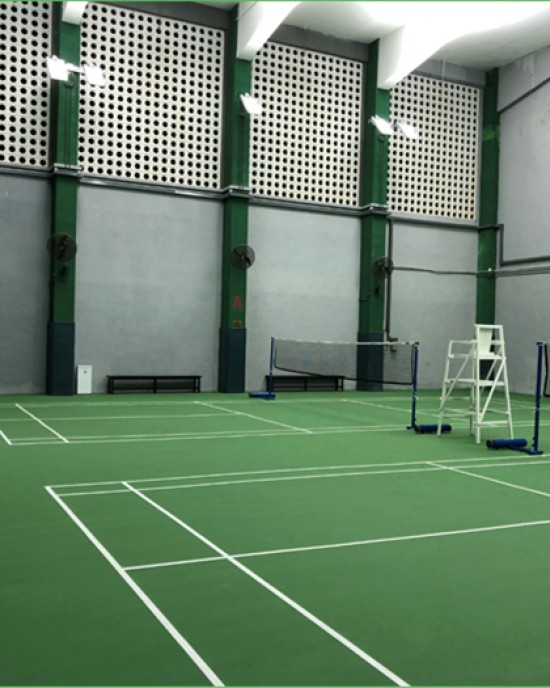

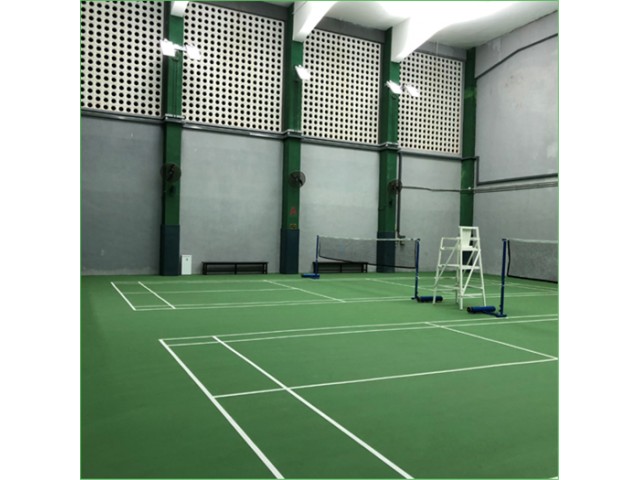

Auto dealerships, parking lots, campuses, facade lighting, high-mast and general site lighting applications

Specificatons

• Utilizes Cree TrueWhite® Technology on 5000K Luminaires
• CRI: Minimum 70 CRI (4000K & 5700K); 90 CRI (5000K)
• CCT : 4000K (+/- 300K), 5000K (+/- 300K), 5700K (+/- 500K) standard
• Efficacy: up to 114 LPW
• Lumen Output: 13789 - 85638 L
• Wattage: 267 - 831 W

Construction & Materials

• Slim, low profile, minimizing wind load>
• Luminaire sides are rugged die cast aluminum with integral,  weathertight LED driver compartments and high-performance heat sinks
• HV mount – adjustable arm that mounts to a horizontal or vertical 2" (51mm) IP, 2.375-2.50" (60-64mm) O.D. steel tenon. Tenon length must be a minimum of 3.75" (95mm). Not for use with NEMA receptacle when mounted to vertical tenon
• AA mount – adjustable mounting arm is rugged die cast aluminum and mounts to 2" (51mm) IP, 2.375–3" (60–76mm) O.D. minimum 3.75" (95mm) tall vertical tenon
• Surface-mount directly to a vertical or horizontal surface with  field-installed EHO-UNV direct mount bracket (accessory (refer to table on page 1)
• Luminaire may be field adjusted for use in uplight position. Please refer to installation instructions for details
• Extruded aluminum adjustable mounting shaft
• Luminaire is adjustable from horizontal 90 ̊ towards pole and 120 ̊ away from pole
• Exclusive Colorfast DeltaGuard® finish features an E-Coat epoxy primer with an ultra-durable powder topcoat, providing excellent resistance to corrosion, ultraviolet degradation and abrasion. Silver, bronze, black, and white are available

LED Light Engine / Driver System​

• More than 20 optical choices Integral, weather-tight LED driver compartment
