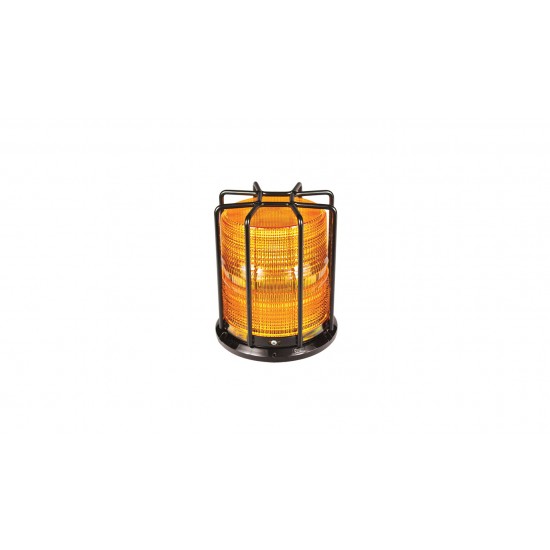

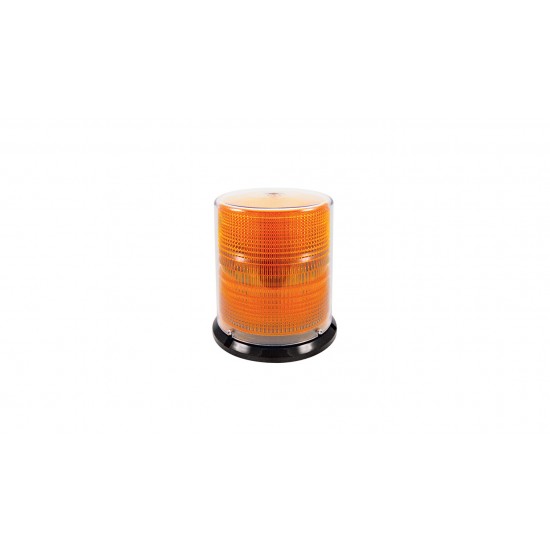

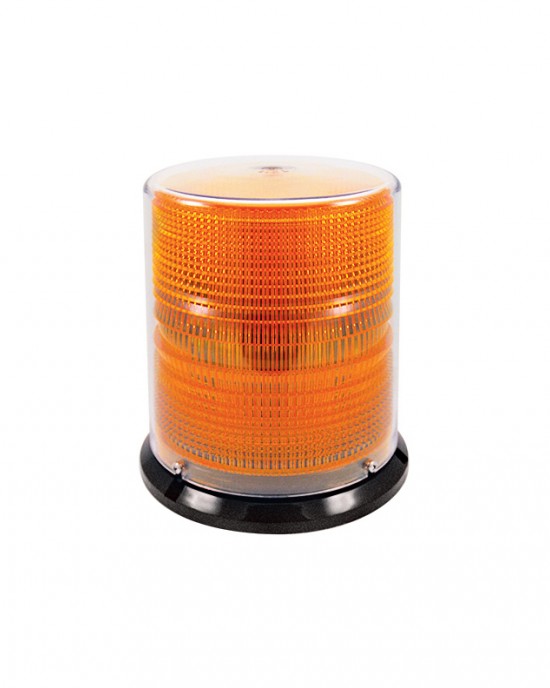

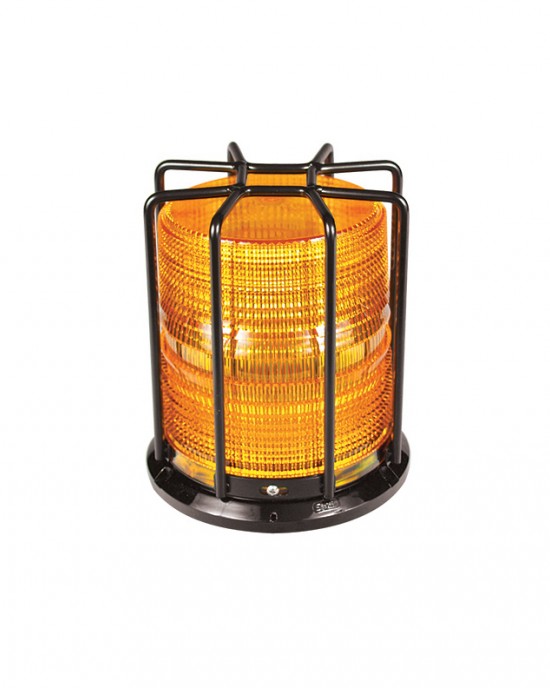

SoundOff 4500 Series LED Beacons

Specifications

• Input Voltage Range: DC 10-30 V
• Led Ccount 12 LEDs Flash
• Patterns: 8 flash patterns
• Mounts: Flat/Pipe or Magnetic mounts ​

​Material and Structure:

• Lens with UV inhibitor prevents sun fade Rated to last 20,000+ hours Heavy duty cast alumium base SAE J845 Class 1 certified
• INPUT VOLTAGE RANGE 10-30 Vdc CURRENT DRAW 4800 Series 1.5 Amp @ 12 Vdc, .75 Amp @ 24 Vdc 4500 Series 1 Amp @ 12 Vdc, 0.5 Amp @ 24 Vdc
• LED COUNT 4800 Series 16 LEDs 4500 Series 12 LEDs
• FLASH PATTERNS 4800 Series 6 flash patterns 4500 Series 8 flash patterns
• OPERATING TEMPERATURE -40° C to + 65° C
• DIMENSIONS 4"
• Dome with base Height 5" (12 cm)
• Diameter: 6.3" (16 cm) base 6"
• Dome with base Height: 6.8" (17 cm)
• Diameter: 6.3" (16 cm) base
• MOUNTS Flat/Pipe mount or magnetic mount
• CERTIFICATIONS 4800 Series ECE65 Class 1 certified 4500 Series SAE J845 Class 1 certified
• WARRANTY Five-year
