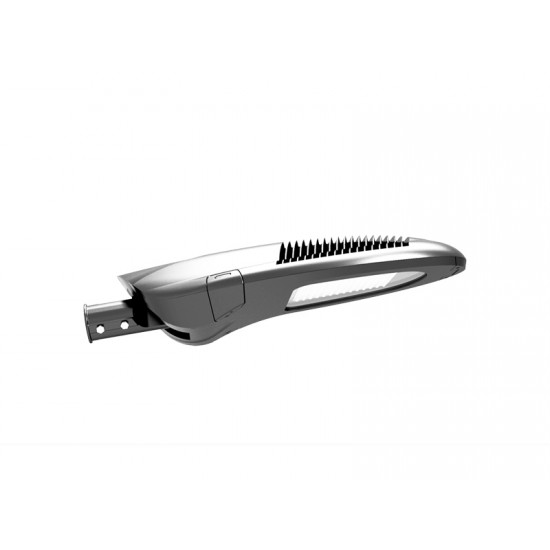

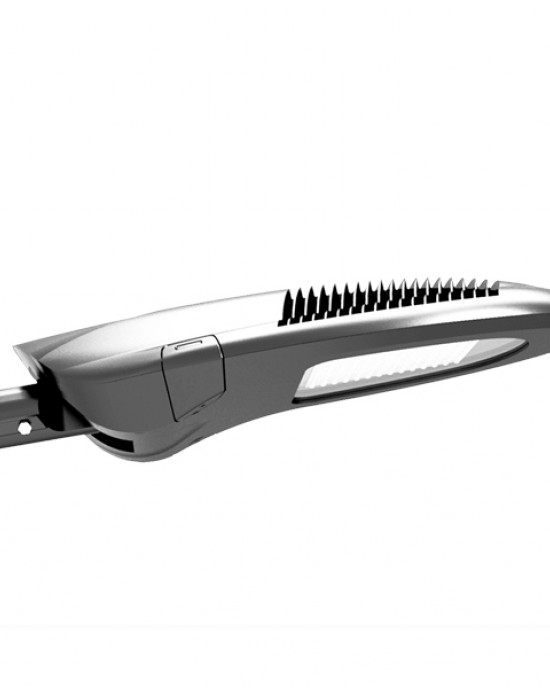

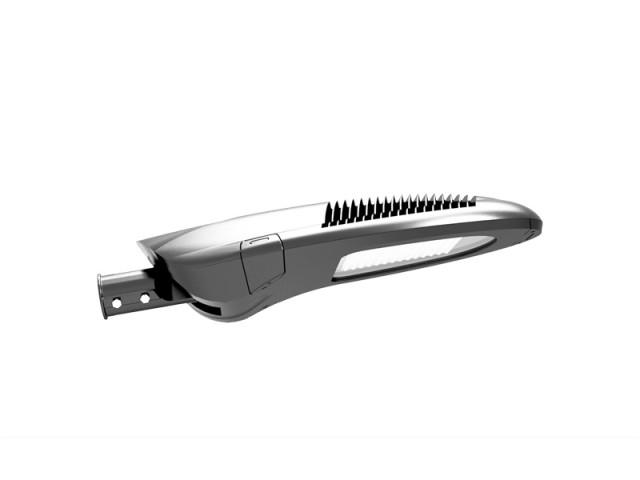

Unilumin LED Road Lighting

• EN 13201 Design Standard
• Driver 0-10V DIM, DALI and Line Switch optional
• Support solar system, DC12V-24V
• Certifications: ENEC UL/DLC CB CE NOM SEC, IK08, IP66
• Housing with Aluminium Alloy die casting has high  structural strength with good thermal conductivity and heat dissipation performance
• Streamlined appearance design, simplicity but also animated
• the interior of the light have Gradienter, ensure horizontal installation
• fastener patent design, tool free to open
• Automatic power-off switch when opening the upper cover
• Cambered upper cover prevents the accumulation of snow, dust, ornithocopros etc.

SPECIFICATIONS

• ​Input Voltage: AC 110V – 277V
• Wattage: 35W to 240W
• Power Factor: >0.9
• CCT: 3000K/4000K/5000K ±300K
• Delivered Light Output: 3800- 28600 lumens
• IP Rating: IP66

​

Construction & materials

• Housing with Aluminium Alloy die casting has high structural strength with good thermal conductivity and heat dissipation performance

​

LED Light Engine / Driver System​

• Driver 0-10V DIM, DALI and Line Switch optional
