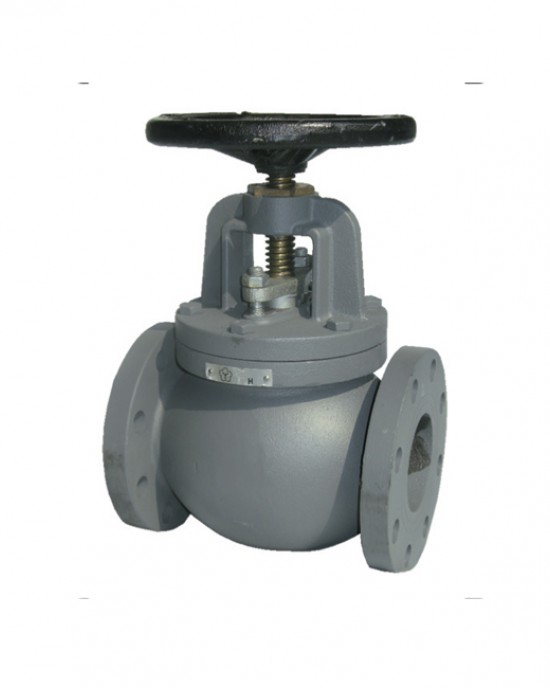

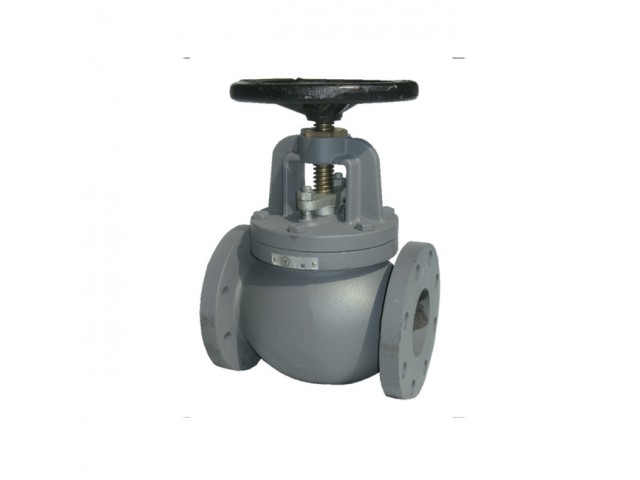

Yamato F10SE 10K Cast Iron Globe Valve
New
Yamato F10SE 10K Cast Iron Globe Valve
$0.00
- Model: F10SE 10K
Bolted Bonnet, Rising Stem
Flanged ends to JIS B2239
Designed to JIS B2031*
W.O.G 120℃ 1.0MPa, Saturated steam 0.7MPa, Water Non-shock 120℃ 1.4MPa
| Parts | Material |
| Body | Cast Iron |
| Bonnet | Cast Iron |
| Stem | Stainless(SUS420J1) |
| Disc | Cast Iron |
| Body Seat Ring | Bronze |
| Hinge Pin | Non-Asbestos |
*This valve is not designed to handle toxic gas or flammable gas.
*Size 1½ to 8. Size 10 and 12 are Maker Standard.
| inch | 1¹⁄₂ | 2 | 2¹⁄₂ | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| mm | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 190 | 200 | 220 | 240 | 290 | 360 | 410 | 500 | 620 | 700 |
| H | 248 | 266 | 304 | 314 | 366 | 452 | 509 | 621 | 710 | 883 |
| D | 160 | 180 | 190 | 210 | 240 | 260 | 270 | 350 | 450 | 500 |
